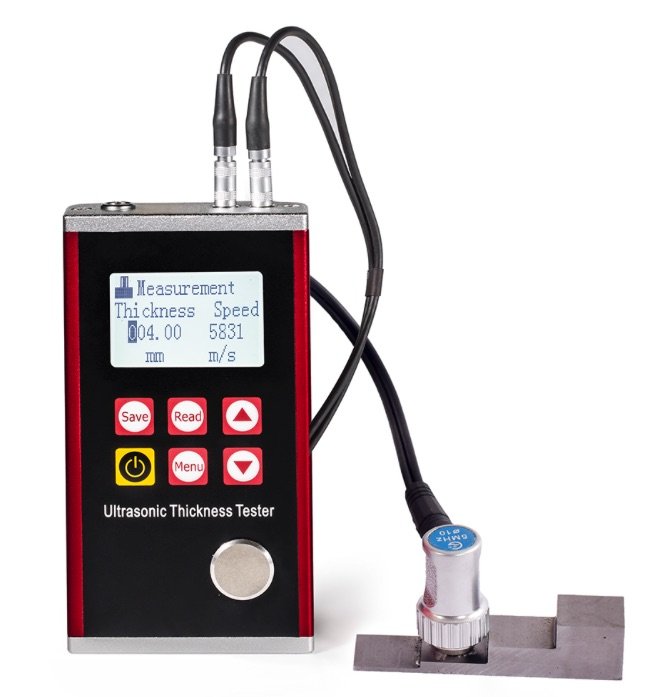

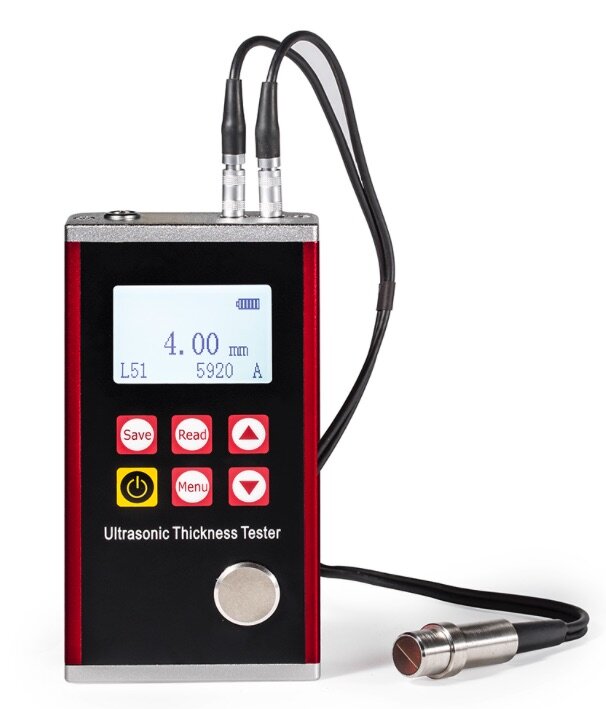

Ultrasonic Thickness Gauge Uee932

SKU: 945
Category: Ultrasonic thickness gauge

Adapted to all kinds of materials which are good conductor of ultrasonic wave, such as metals(steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.

High quality metal shell
Precise measuring performance
with 2 probes (Standard probe and Angle probe)
Integrated with a 4mm calibration block.
Two display units: mm and inch.
With coupling state indication.
Measuring sound velocity: according to the known thickness of the object, sound velocity of it can be measured directly.

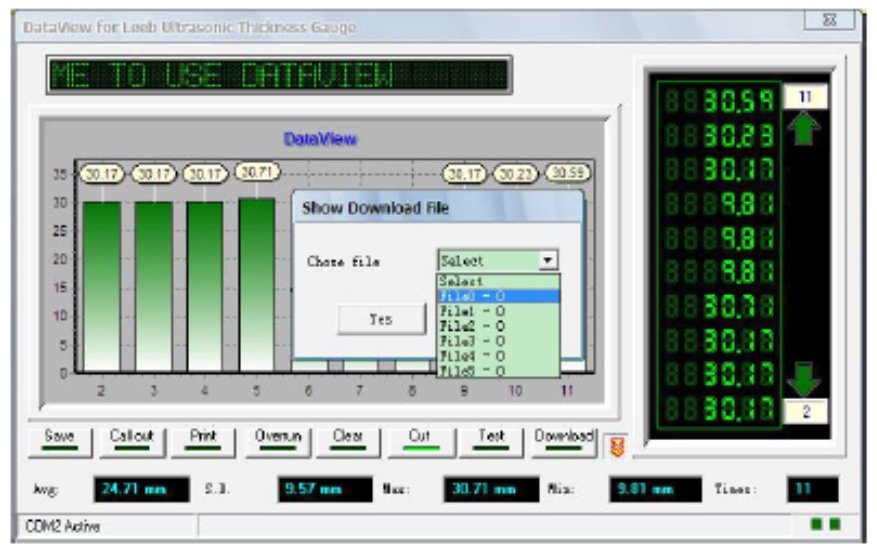

Software for PC connection and data transmission, analysis.

435,00 €

excl. 19% VAT

Delivery time: 12 - 13 Workdays (Other countries)

Description

Adapted to all kinds of materials which are good conductor of ultrasonic wave, such as metals(steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.

Technical Parameters

Model
Uee932

Measuring range(mm)
0.75~350 (depend on probes)

Resolution(mm)
0.01

Accuracy(mm)
±(0.5%H+0.01) H refers to the thickness of testing piece

Velocity range(m/s)
1000~9999

Velocity measurement

Storage
2000 Groups

Shell
Metal

Operating Temperature
-10°C~60°C

Dampness
20%~90%

Dimensions(mm)
130*70*30 mm

Power supply
2* AA

Weight (g)
300 g

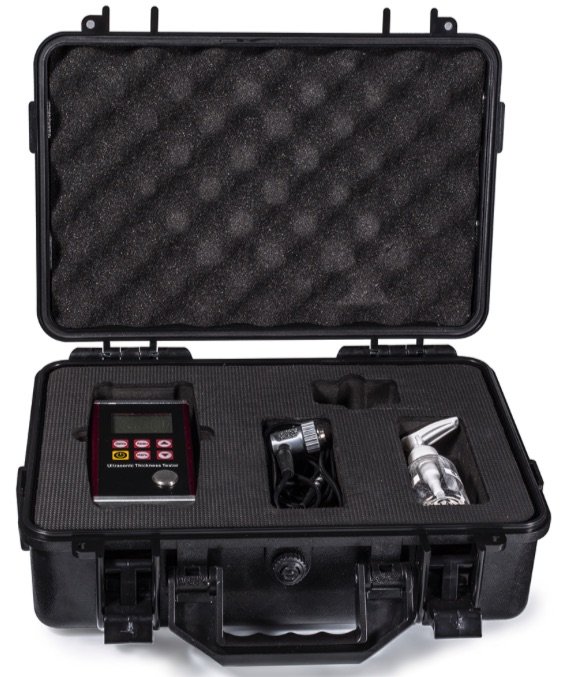

Standard Configuration
1 piece Main unit
1 piece Standard probe(5P Ø10)
1 piece Angle probe (90 °, 5P Ø10)
1 piece Users’ Manual
1 piece Certificate
1 piece Coupling agent
1 piece PC software
2 pieces AA alkaline battery
1 piece Warranty card
