X-ray film viewer LED FV
Low-cost X-ray viewing devices for industrial radiographic inspection.

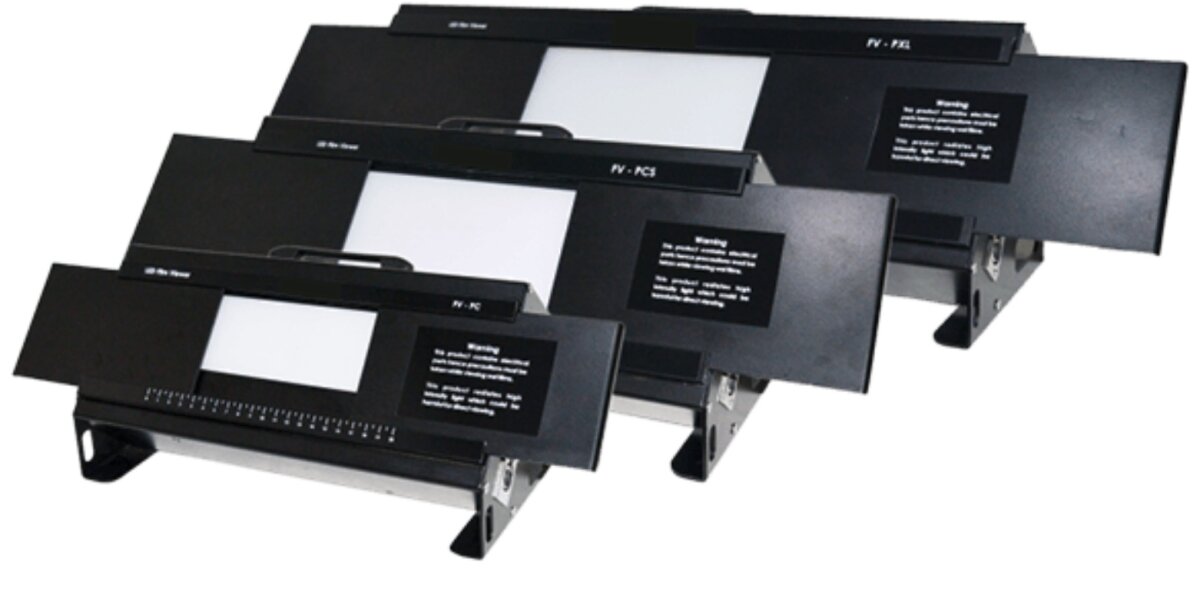

Choose from 3 device sizes:
Description:
LED FV - PC / PCS / PXL
Viewing area (LxW)
60mm x 200mm
100mm x 300mm
110mm x 425mm
Analysable blackening :
Up to 4.5 D
Input voltage:
110-260 VAC, 50 - 60Hz
Rated power:
90W
150W
240W
Surface temp:
< 46° C
Dimensions (LxWxH):
360mm x 150mm x 165mm
470mm x 175mmX195mm
600mm x 175mmX195mm
Housing:
Powder coated aluminium
Maximum brightness:
≥ 515,000 lux/ ≥185,000 cd/m2
≥ 410,000 lux/ ≥100,000 cd/m2
≥ 410,000 lux/ ≥100,000 cd/m2
Intensity control:
From 10% - 100%
From 10 % - 100 %
From 10 % - 100 %
Cooling:
High-performance fan with aluminium heat sink
Weight:
3 kg (6.6 lbs)
4 kg (8.8 lbs)/5.8 kg (12.8 lbs) with SMPS
5.3 kg (11.6 lbs)/7.9 kg (17.4 lbs) with SMPS-260 VAC, 50 - 60Hz
Kit includes:
- LED film viewer
- power cord
- foot switch
- SMPS (PCS & PXL)
- Operating instructions & certificate of conformity
